TỦ ĐIỀU KHIỂN KÈM BỘ NGUỒN BOSCH

Địa chỉĐịa chỉ: Tầng 3, Cao ốc PNTechcons, 48 Hoa Sứ, Phường 07, Quận Phú Nhuận , TP. Hồ Chí Minh

HotlineHotline: 0915 464349

TỦ ĐIỀU KHIỂN KÈM BỘ NGUỒN BOSCH

  • AEC-AMC2-ENC3
  • Liên hệ
  • 946

Quantity Component:

  • 1 Housing with single din rail
  • 1 Power supply unit and pre-assembled cables
  • 1 Installation description

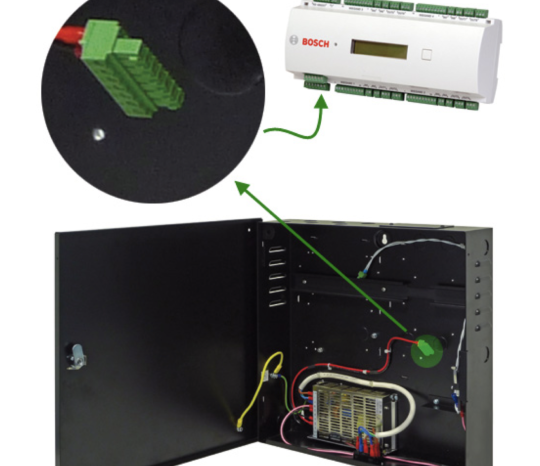

The enclosure has been produced in accordance with strict guidelines, and is used for securely mounting and housing the AMC and a power supply.

  • Thông tin sản phẩm
  • Bình luận

Input Voltage : 100 – 240 VAC, 50/60 Hz

Input Current : 1.5A

Output Voltage : 13VDC

Output Current @ 13 VDC (Min. / Rated / Max.): 0 / 2.5A / 3.5A

Output Current for Battery Charging @ 13 VDC Bat+ and Bat– (Min. / Rated / Max.) : 0 / 0.23A / 0.23A

Temperature (Operating) : 0 °C – 50 °C (32 °F – 120 °F)

Humidity : 5% – 85% ±5% RH, non- condensing

Power Consumption (AMC) : 5 VA

Dimension (W x H x D) : 400 mm x 400 mm x 94 mm (15.75 in x 15.75 in x 3.7 in)
