BỘ ĐIỀU KHIỂN CỬA BOSCH APC-AMC2-4WCF

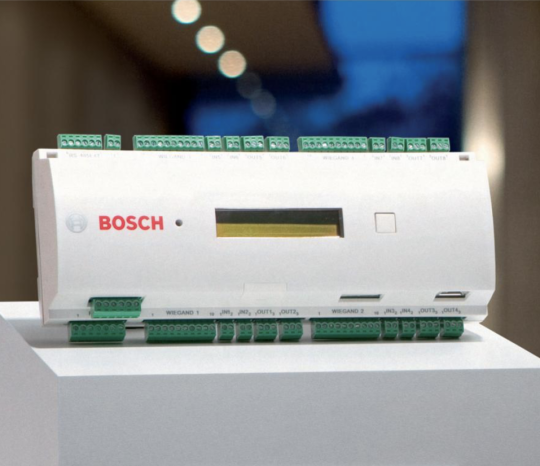

The AMC2 (Access Modular Controller) is used as an access controller in the access control systems:

• BISACE (Access Engine) from version 2.0 onward

• AMS (Access Management System)

• APE (Access Professional Edition).

  The device controls a group of one to eight access points. These access points, also known as entrances, can be:

• doors

• gates

• barriers

• turn stiles

• revolving doors

• mantraps

• ID card, PIN and biometric readers

• door opening elements

• sensors.

  The AMC2 can control a maximum of eight ID readers (depending on the reader type) and fully processes the access logic at the assigned entrances.

  The analog inputs have a status recognition of the connected lines.

  The relay outputs activate the door opening elements and/or generate the security activation and signaling.

  The AMC2 stores all necessary information in a battery-buffered memory and a compact flash storage element. Thus, even when the unit is offline, it checks independent authorization on access points, takes access decisions, controls closing/opening elements and registers movement events.
